SPF Tower Filter Press

★ Equipment Features

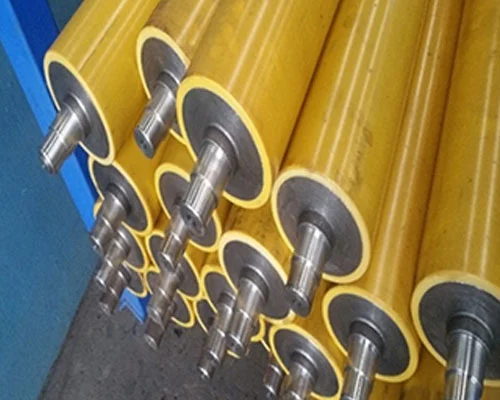

● use stacked structure for the plates, use auxiliary guide device to make the operation become more stable.

● integrate filtering, extrusion, washing, air-drying, cake discharging and cloth washing together.

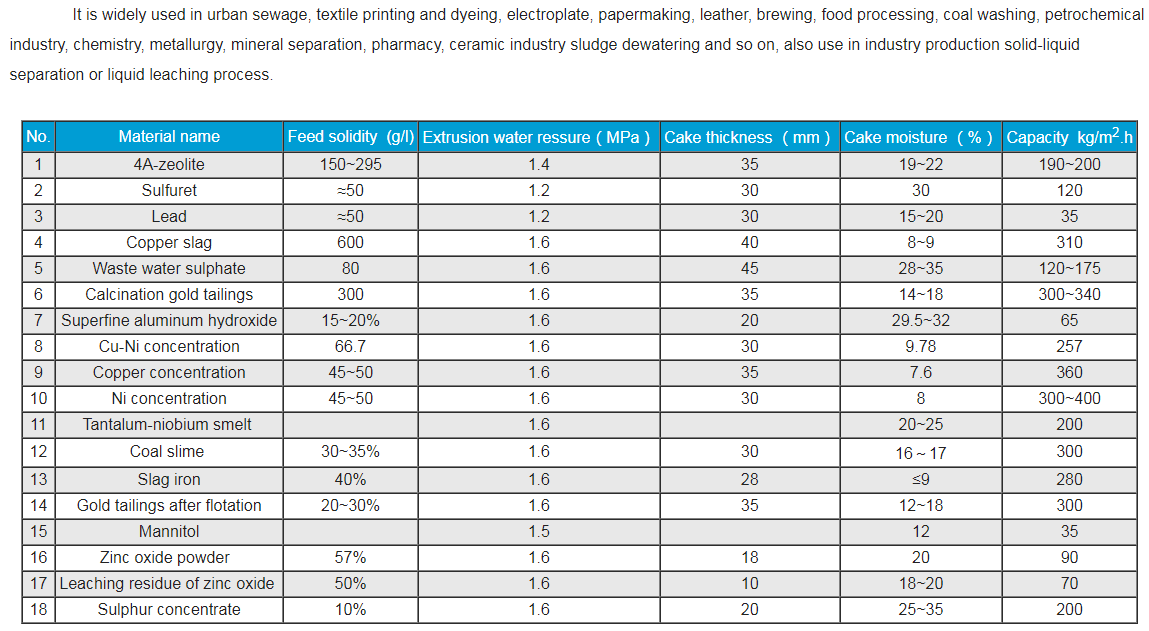

● the extrusion pressure up to 1.6MPa, it widely used in the field which has different requirements for cake moisture.

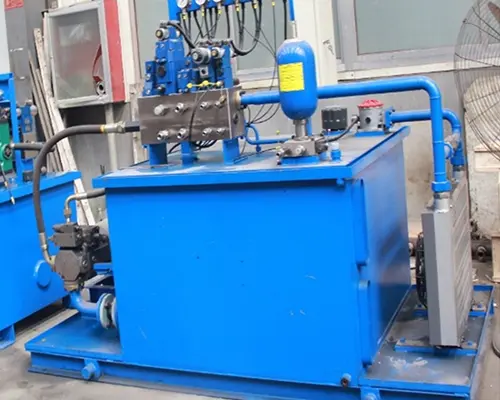

● 4.use hydraulic drive control system, make the operation stable and with low power consumption.

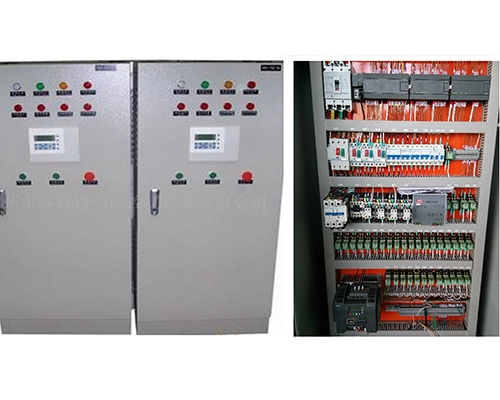

● integrate PLC, HMI and instruments control system etc. intelligent together, it makes filter more efficient and easier.

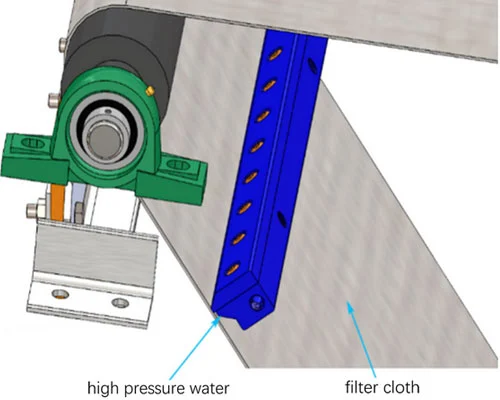

● use high pressure water cleaning device to make the cloth washing more effective.

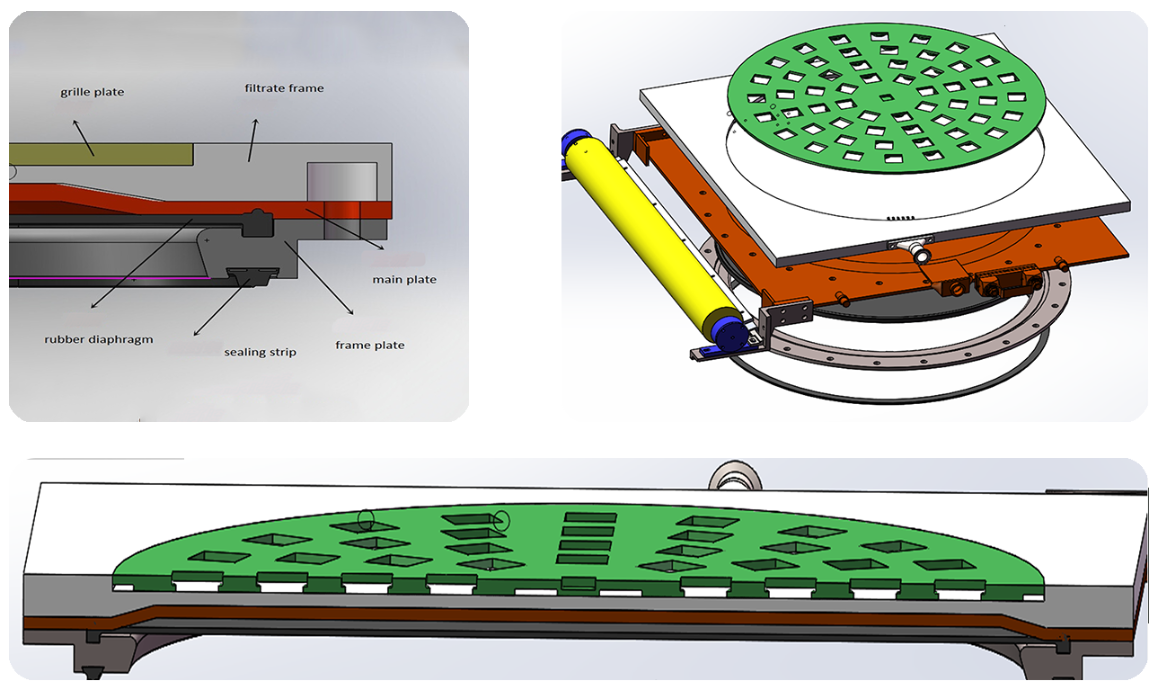

● design with circular chamber, the structure more rational, the efficiency more prominent.

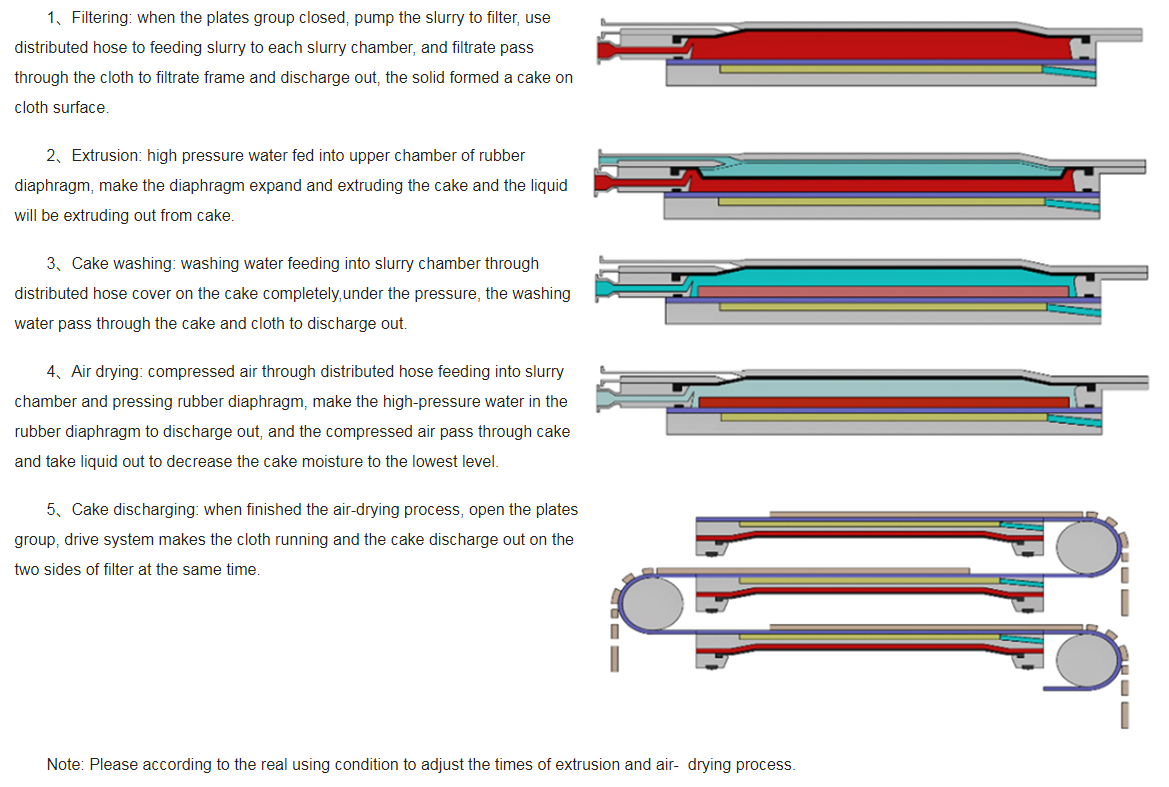

★ Operating Principle

★ Process Flow Diagram

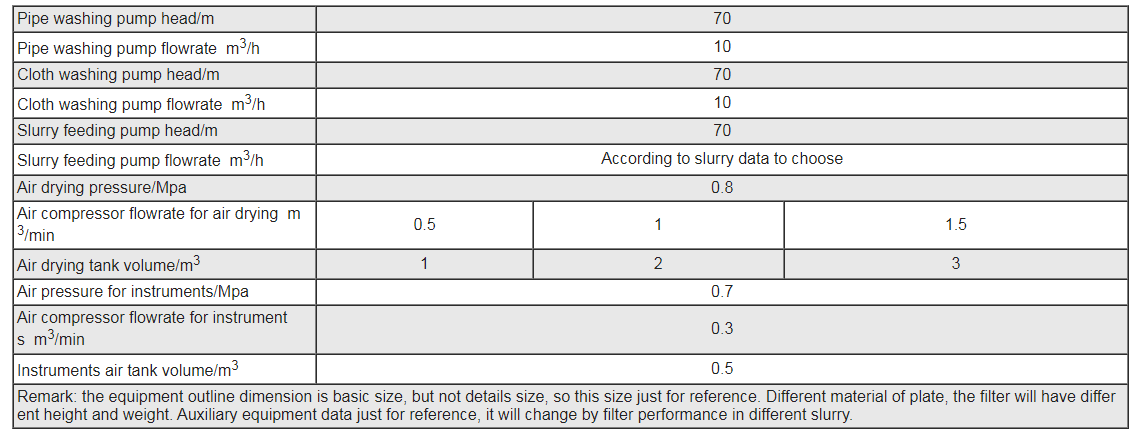

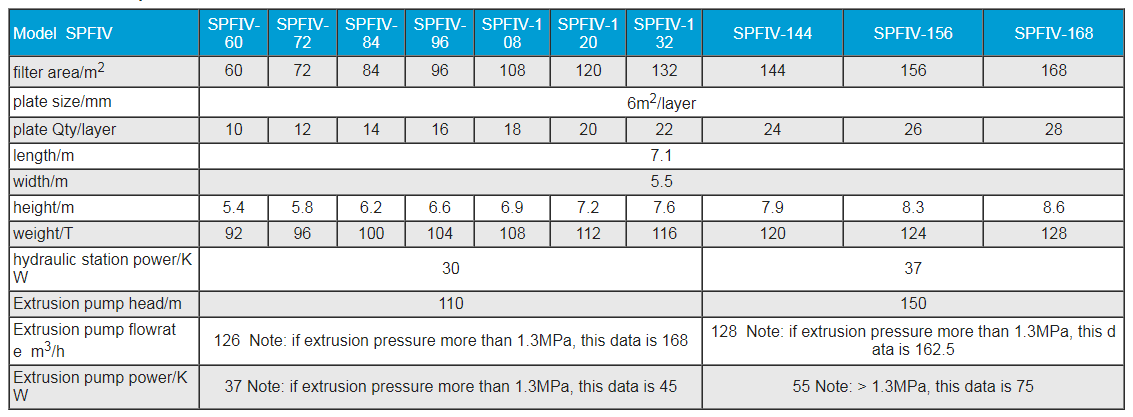

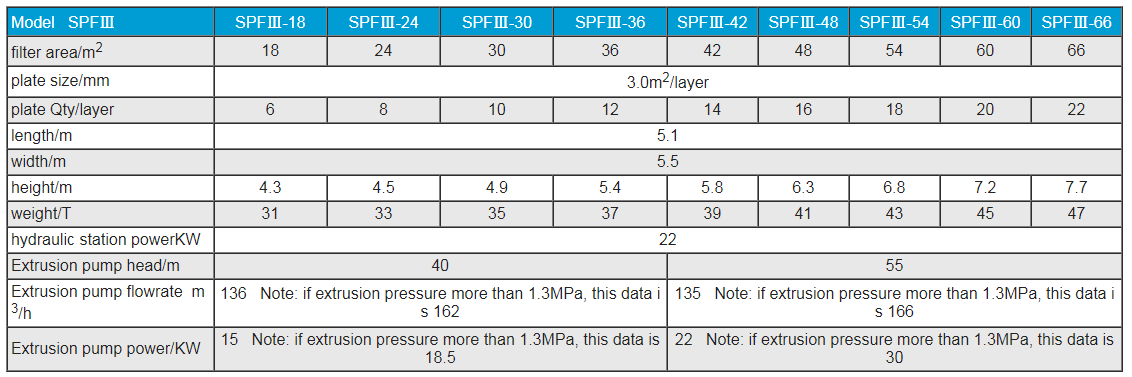

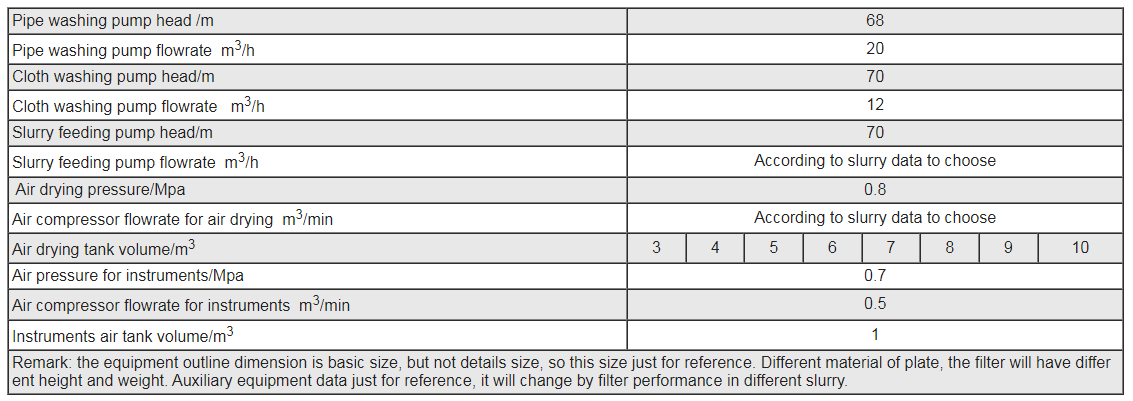

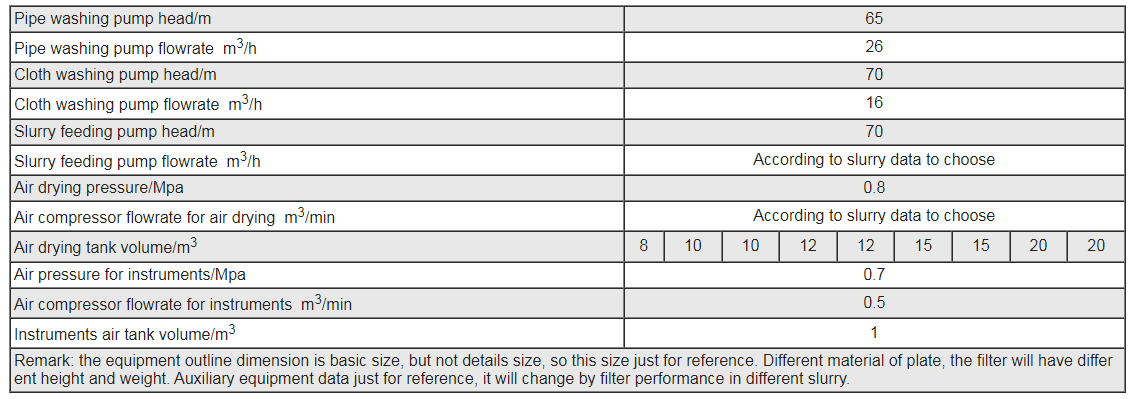

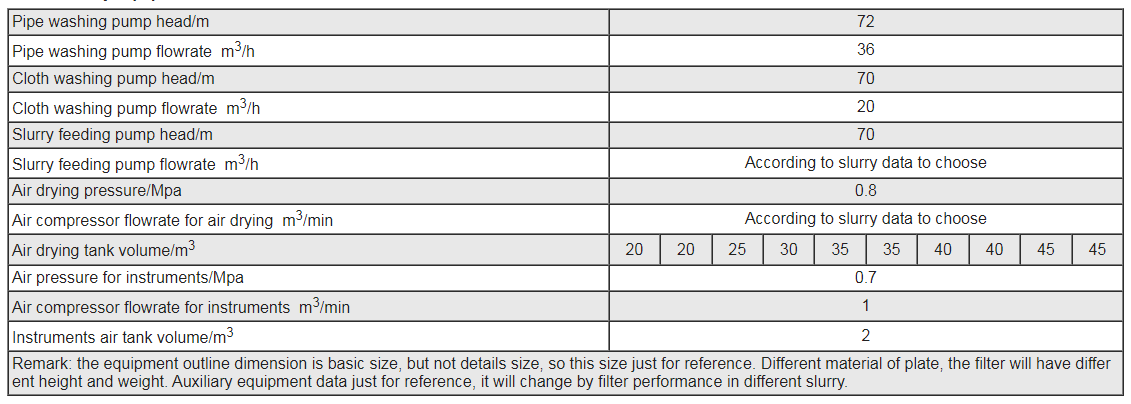

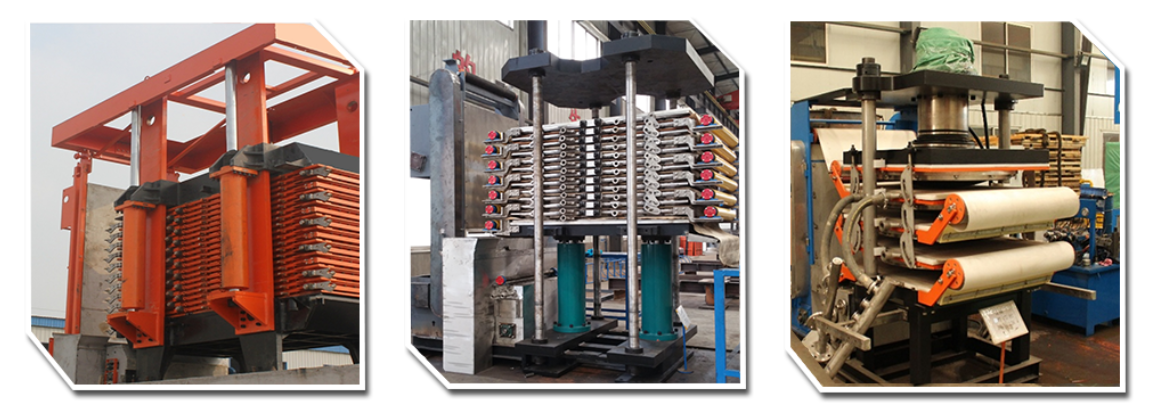

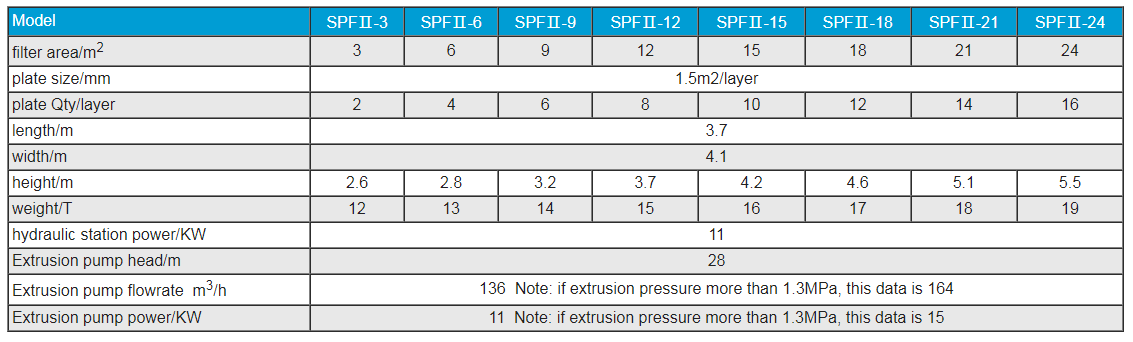

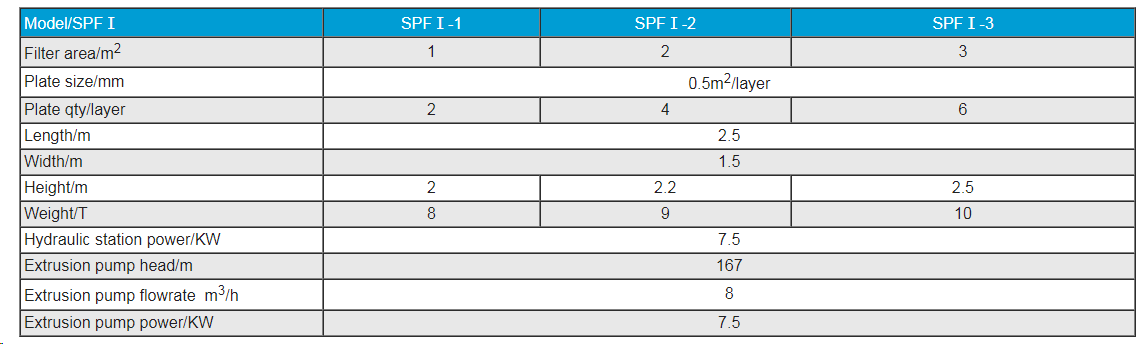

★ Equipment Series
