Name: Precise Tube Filter
Brand: QINGDAO HESHENG INTELLIGENT ENVIRONMENTAL PROTECTION EQUIPMENT CO., LTD.

Equipment Introduction

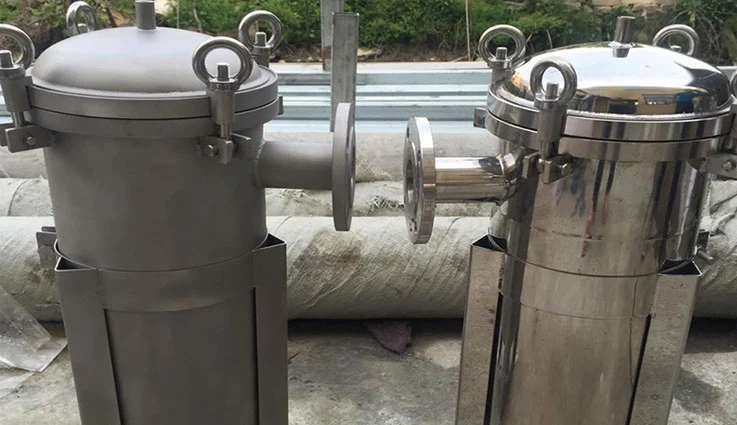

● PGT series precise microporous tube filter

PGT series precise microporous tube filter use PE, PA filter tube as filter medium, it is suit for filtering low solidity and temperature between 0-90℃material, which can reach a good result. This filter can reach second time slurry feeding, cake drying, no remains of filtrate, full-automatic control function.

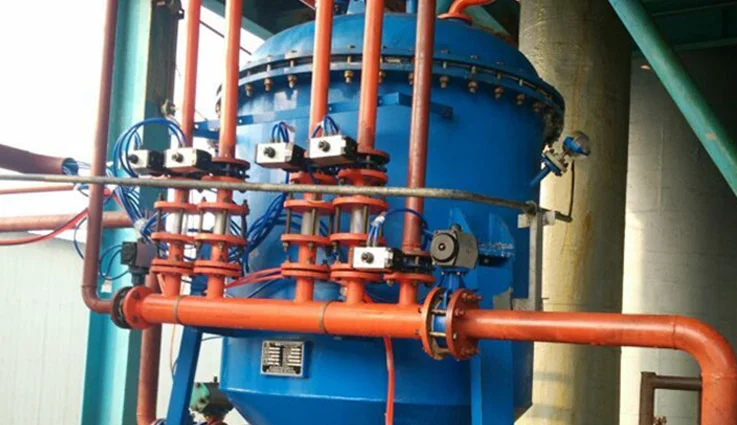

● TGT series ceramic microporous tube filter

TGT series ceramic microporous tube filter use ceramic membrane filter tube as filter medium, it is widely used in high temperature slurry field.

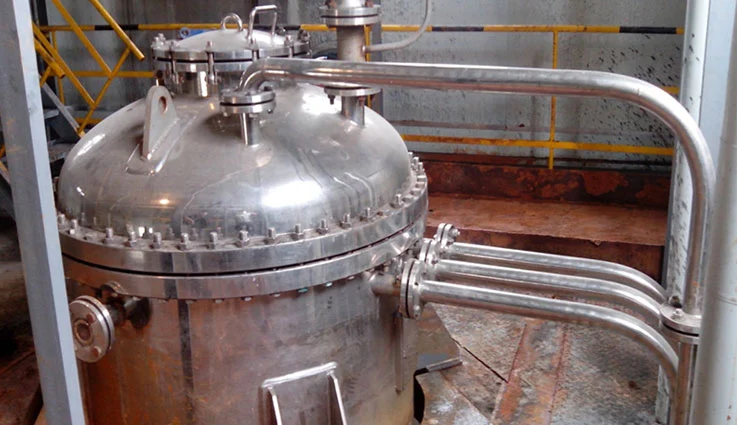

● BGT series stainless steel microporous tube filter

BGT series stainless steel microporous tube filter use stainless steel fiber sintered filter tube as filter medium, it is widely used in wide temperature range, big volume slurry and coal chemical industry.

● FGT series tube film filter

FGT series tube film filter use organic membrane or filter bag as filter medium, it is good at filtering suspended solids.

Contact us

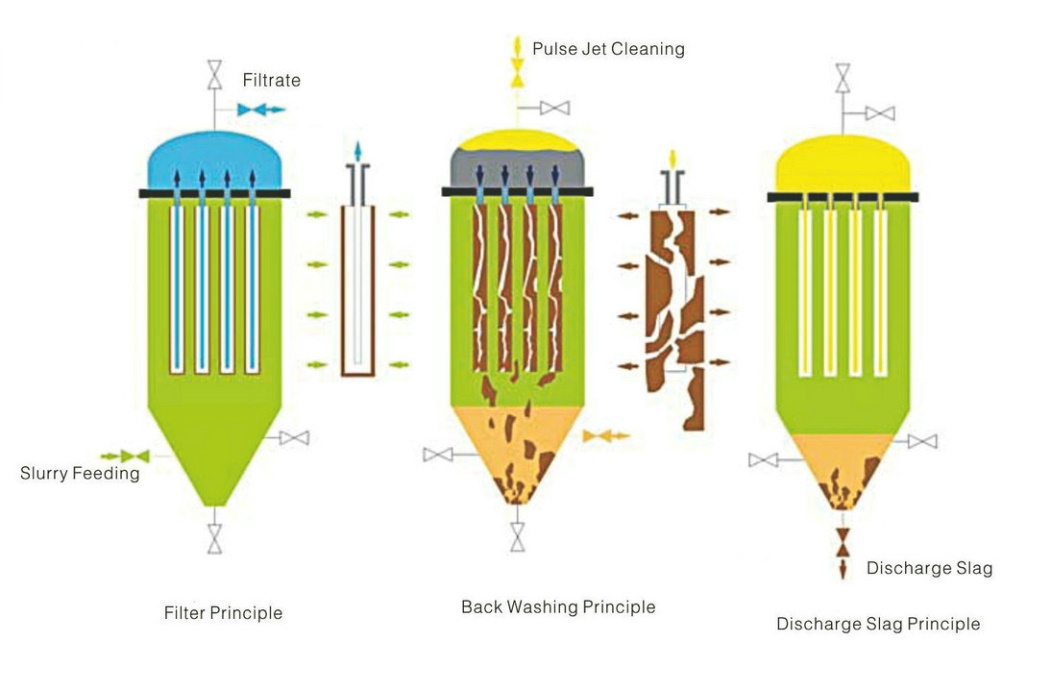

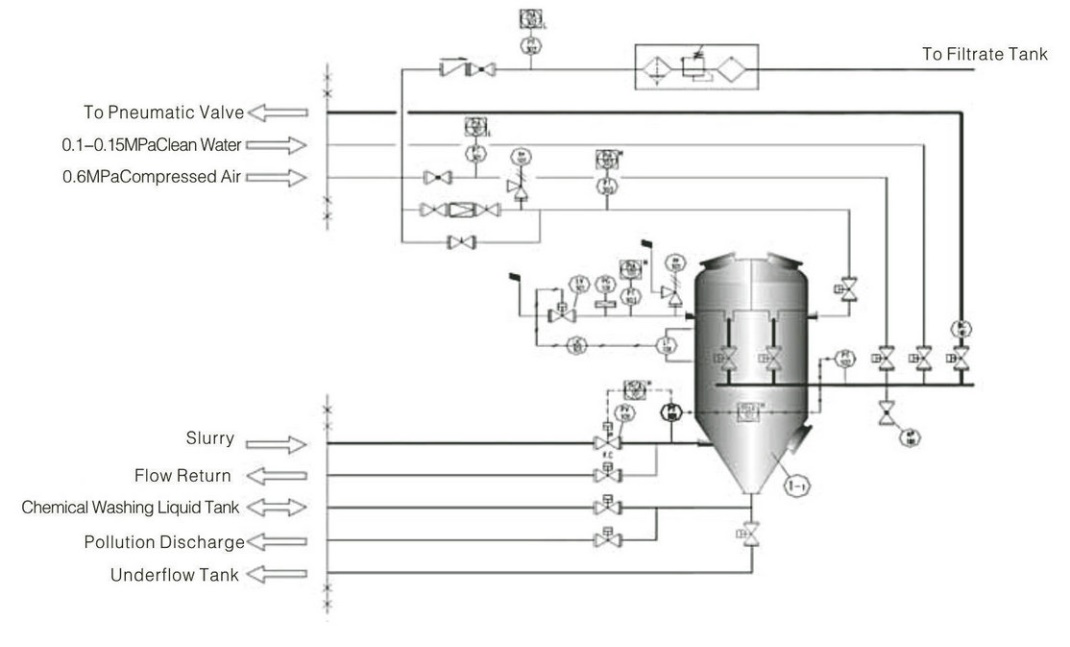

Operating Principle Diagram

Features of Precise Tube Filter

High efficiency and energy saving.
Hermetically sealed operation, make local site clean, no smell leakage.
Many organic solvent proof, acid proof, alkali proof, salt proof.
Automatic operation, low labor strength, one worker can operate serval sets equipment at the same time.
High filter precision, one time filtering, no need recycle.
High recovery of mother liquor.
Good filtering efficiency for suspended solid.
According to the real volume to design the equipment size and choose the material.

Application Fields:

The equipment widely used in chemical industry, hydrometallurgy industry, pharmacy, beverage industry, edible oil, fertilizer industry and other environment protection industries.

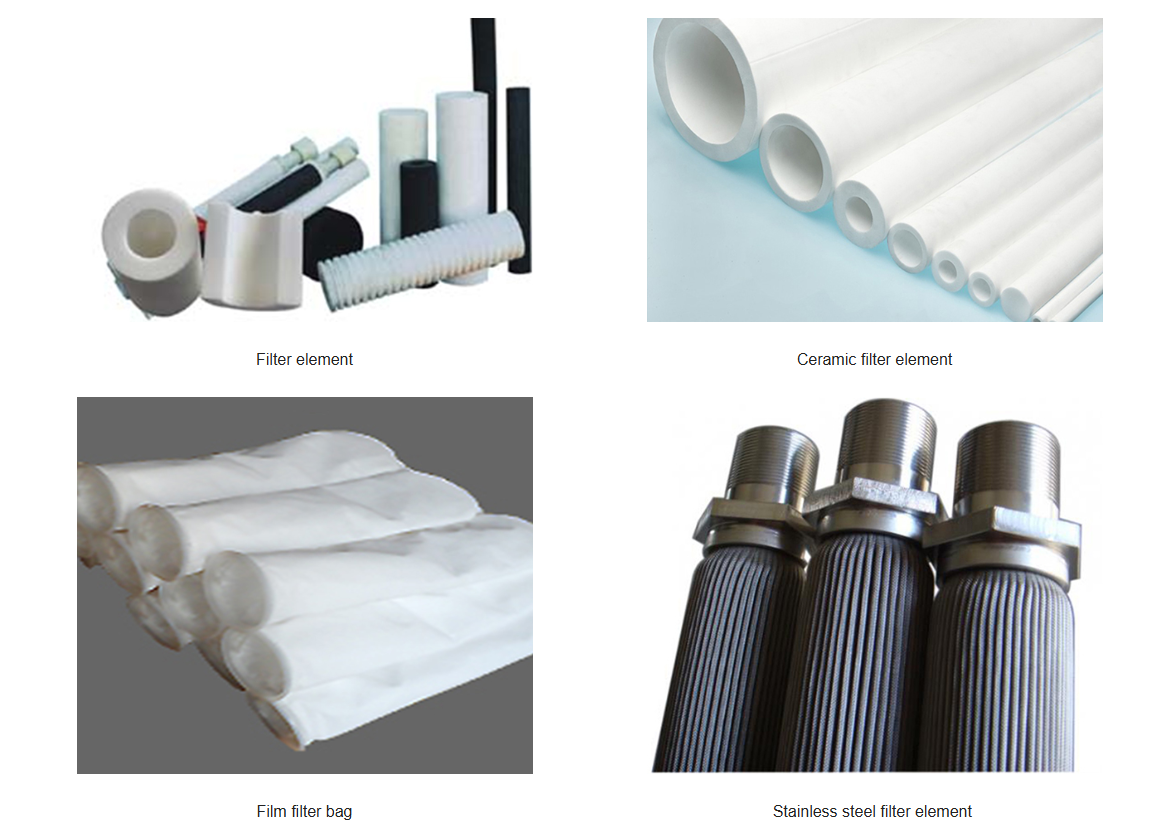

Filter Medium Introduction

● The filter medium supplier base on our productive technology of filter tube to supply the special material medium to us, it is different from other suppliers’ raw material, so as to ensure the high quality of filter tube.

● Specificity of filter tube productive technology.

● The capillary porosity of each filter tube are uniform distribution, good permeability and good water flow balance, avoiding different flow resistance in the same volume and different filtering capacity.

● Filter tube with uniform filter precision, from tube beginning to ends are the same, will not appear different filter precision on the same tube.
