Name: LDZ Crawler Vacuum Pressure Belt Filter
Brand: QINGDAO HESHENG INTELLIGENT ENVIRONMENTAL PROTECTION EQUIPMENT CO., LTD.

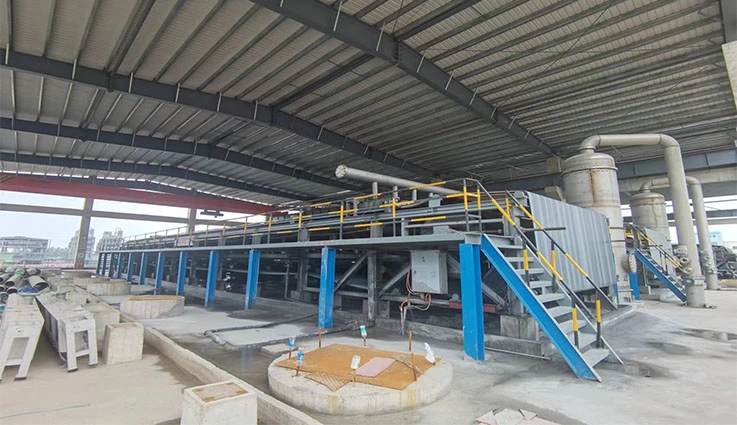

Equipment Introduction

Crawler belt vacuum pressure fiter is made up of crawler belt over device, rubber belt,vacuum box, driving roler, belt suppors, feeding hopper, fiter cloth corrective device. drving device, fabric cleaning device, oler soueeze. frameworks, etc. it's an efficient solid-liquid separation equipment that makes ful use of slurry gravity, vacuum, coupled cloth pressing and roller squeeze.

Contact us

Videos of LDZ Crawler Vacuum Pressure Belt Filter

LDZ Crawler Vacuum Pressure Belt Filter 1

Specifications of LDZ Crawler Vacuum Pressure Belt Filter

Example: LDZ20（6）/2000

L- belt cover & squeezing

D- Belt

Z- Vacuum

20- filtration area 20㎡

(6) -cover & squeezing area 6㎡

2000- valid width 2m

Model	Host Power（KW）	Frame length（mm）	Frame width（mm）	Frame height（mm）	Weight（T）	Vacuum consumption（m³/min）
LDZ7.5（2.5）/1000	3.7	11500	1600	2000	8	20
LDZ10（2.5）/1000	3.7	14000			10	25
LDZ12.5（2.5）/1000	5.5	16500			11	28
LDZ15（2.5）/1000	7.5	19000			12	35
LDZ9.75（4）/1300	7.5	11500	1900	2100	12	25
LDZ13（4）/1300	7.5	14000			13	30
LDZ16.25（4）/1300	11	16500			14	35
LDZ19.5（4）/1300	11	19000			15	40
LDZ22.75（4）/1300	15	21500			16	45
LDZ20（6）/2000	11	14100	2700	2100	16	50
LDZ25（6）/2000	11	16600			18	60
LDZ30（6）/2000	15	19100			20	70
LDZ35（6）/2000	15	21600			22	80
LDZ40（6）/2000	18.5	24100			24	90
LDZ31.25（8）/2500	15	16600			22	70
LDZ37.5（8）/2500	15	19100			25	80
LDZ43.75（8）/2500	18.5	21600			28	90
LDZ50（10）/2500	22	24100			31	110
LDZ59.25（10）/2500	22	26600			34	120
LDZ45（10）/3000	18.5	19100	3700	2200	30	100
LDZ52.5（10）/3000	18.5	21600			34	110
LDZ60（10）/3000	22	24100			38	130
LDZ67.5（10）/3000	30	26600			42	140
LDZ75（10）/3000	37	29100			47	160
LDZ80（16）/4000	37	24100			55	170
LDZ90（16）/4000	37	26600			66	200
LDZ100（16）/4000	45	29100			76	210
LDZ110（16）/4000	45	31600			84	220
LDZ120（16）/4000	55	34100			90	250
LDZ108（16）/4500	55	28200	5300	2600	90	220
LDZ121.5（16）/4500	55	31200			100	250
LDZ135（18）/4500	75	34200			110	380
LDZ148.5（18）/4500	75	37200			120	320

Features of LDZ Crawler Vacuum Pressure Belt Filter

High degree of automation, it can continuously complete the functions of slurry feeding, vacuum dewatering, squeezing, filter cloth washing, etc., with extremely high production efficiency.
Combining vacuum belt filter, belt press filter and press filter (it can be called a continuous plate and frame filter press) three in one, maximum to remove water.
Reasonable structure, low equipment failure rate, easy to maintain.

Structure & Working principles:

Structure:

Crawler belt vacuum pressure filter is made up of crawler belt cover device, rubber belt, vacuum box, driving roller, belt supports, feeding hopper, filter cloth corrective device, driving device, fabric cleaning device, roller squeeze, frameworks, etc. It is an efficient solid-liquid separation equipment that makes full use of slurry gravity, vacuum, coupled cloth pressing and roller squeeze.

Working principles:

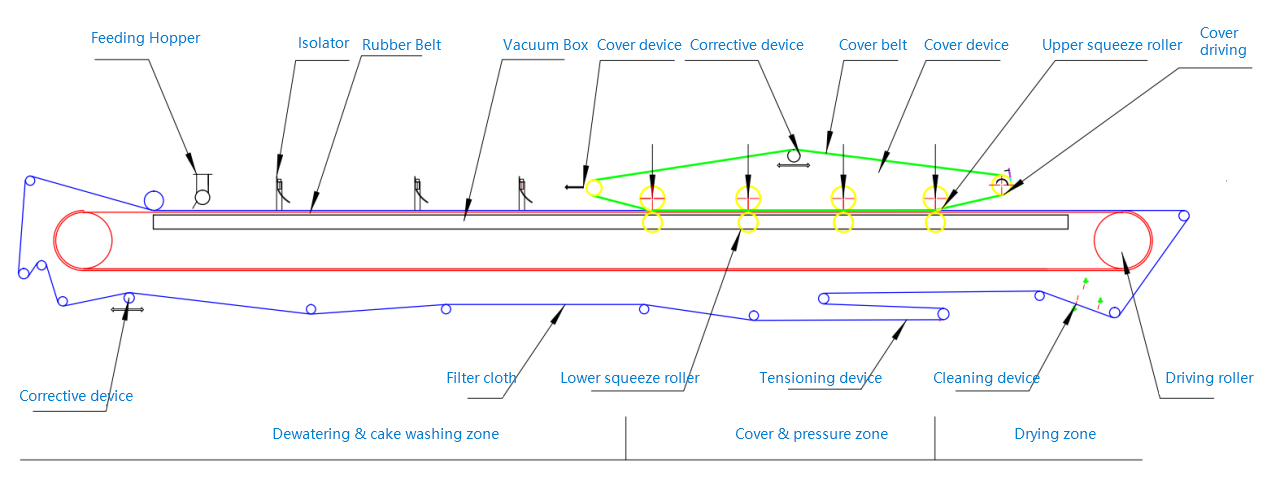

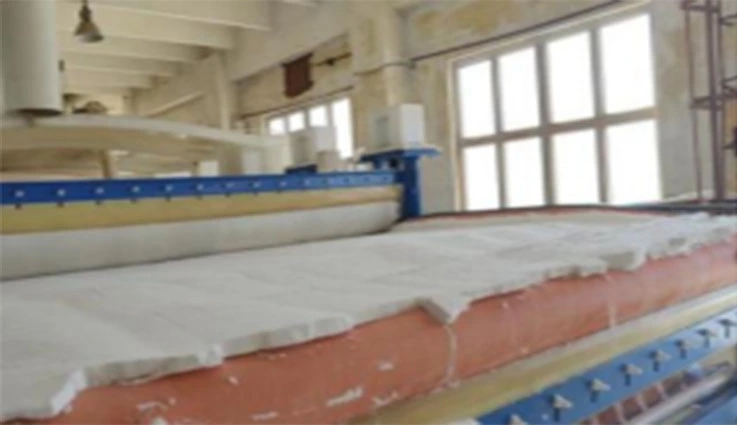

As shown, the annular rubber belt is driven by a reducing motor run continuously, and the filter cloth which laid on the rubber belt run with it synchronously. The rubber belt contact with sliding table of vacuum box (There is an annular friction belt between the vacuum box and the rubber belt, and water is fed into it to form a water seal), when the vacuum box is connected to the vacuum system, vacuum area formed on the rubber belt, the slurry is evenly distributed on the filter cloth by the feeding hopper, as vacuum exist, the filtrate penetrates the filter cloth and is collected by the transverse grooves on the rubber belt and flows into the vacuum box through the holes in the center of rubber belt, while the solid part is intercepted and become filter cake on filter cloth. The filtrate in the vacuum box is discharged by air-liquid separator.

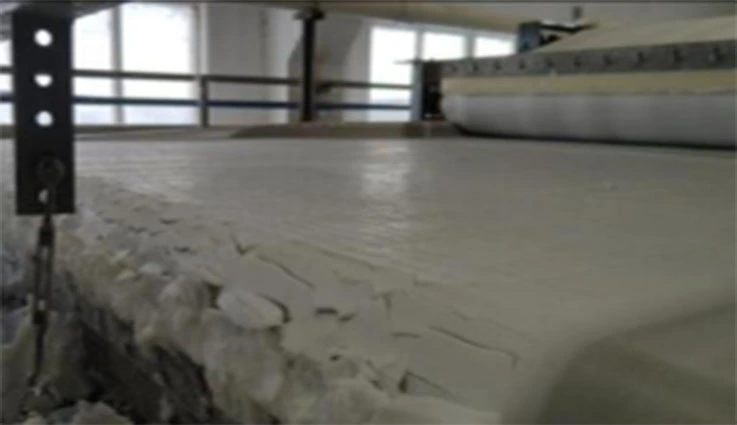

As the rubber belt moves, the cake enters the filter extraction area, cover area and drying area in turn. At the cover area, upper and lower filter cloth wrap together, forming a high vacuum area, while the rollers which in cover area and driven by air cylinders squeezing the cake with great linear pressure, maximum remove water from the cake. At the drying area, the cake is dewatered further, at last, the cake separate with the belt at the cake discharge roller. And the filter cloth renewed by cleaning device re-enter the filter area after passing through a set of support rollers and corrective device.
