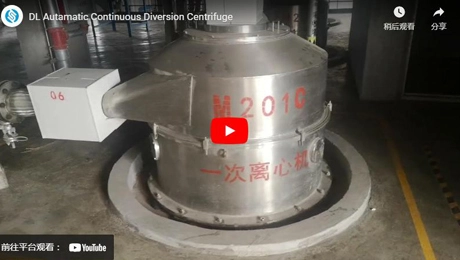

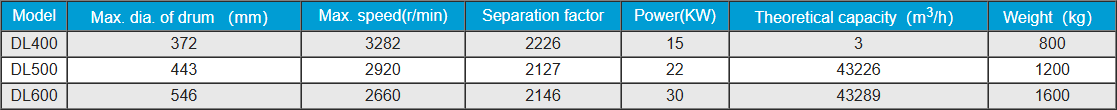

Specifications of DL Autamatic Continuous Diversion Centrifuge
Part Application Scope
Features of DL Autamatic Continuous Diversion Centrifuge
● Automatic, continuous, it is effective improve the equipment consistency and reduce operating strength in the whole process.
● Good stability, a few wearing parts, low fault rate.
● Simple foundation, no complicated absorb shock platform.
● Whole machine sealing, so as to close the smelly material, and form a clean and environment protection working site.
● High stability, working stable, no obviously shaking.
● Frequency control speed, according to different separating efficiency to choose right speed.
Main Structure

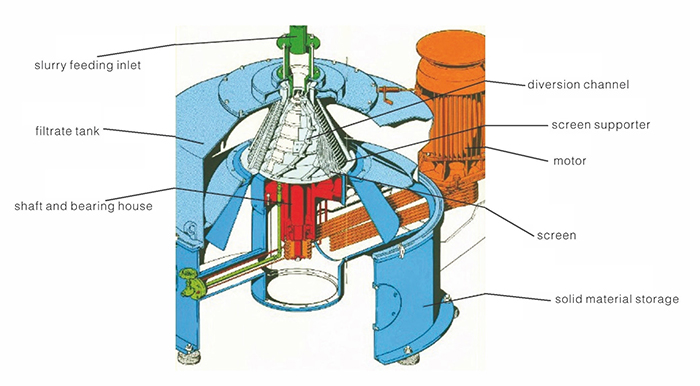

Main structure of DL Automatic continuous diversion centrifuge including adjustable diversion separator device, drive device, filtrate collector, solid collector, absorb shock structure, motor. It has a few wearing parts, and working stable.

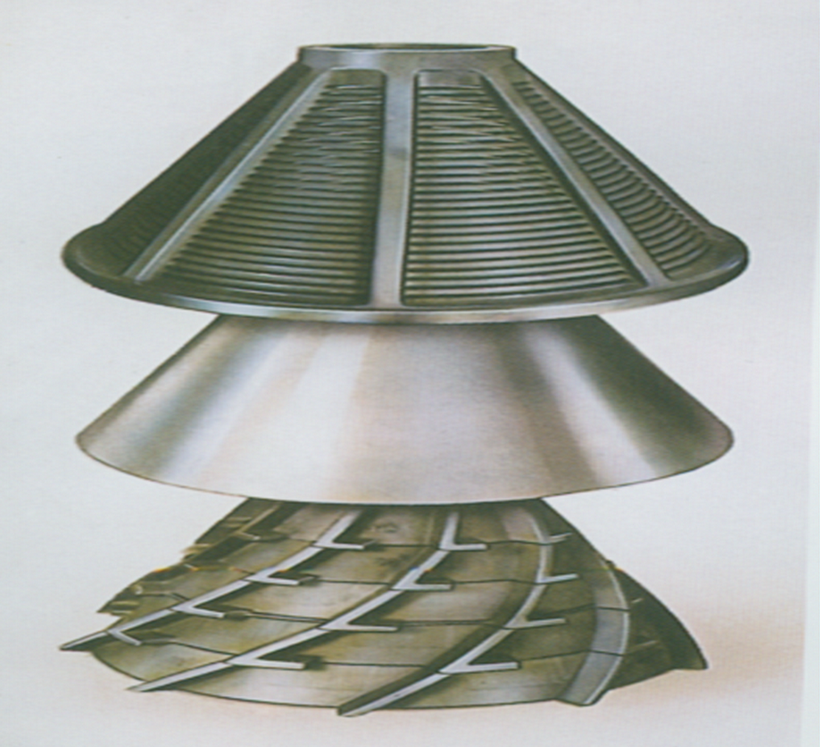

Adjustable diversion separator device made up of inner drum, adjustable diversion structure, screen and outside screen supporter.
Working Principle
During the equipment operation, screen, screen supporter and adjustable diversion structure are running by setting speed, when the speed up to setting value, the slurry feeding from inlet constantly. After the slurry feeding to separator, the solids were hold on the screen, and discharge automatically by its gravity and centrifugal force to solid material storage. The filtrate will pass through screen and outside screen supporter to filtrate collector and discharge liquid through outlet.
