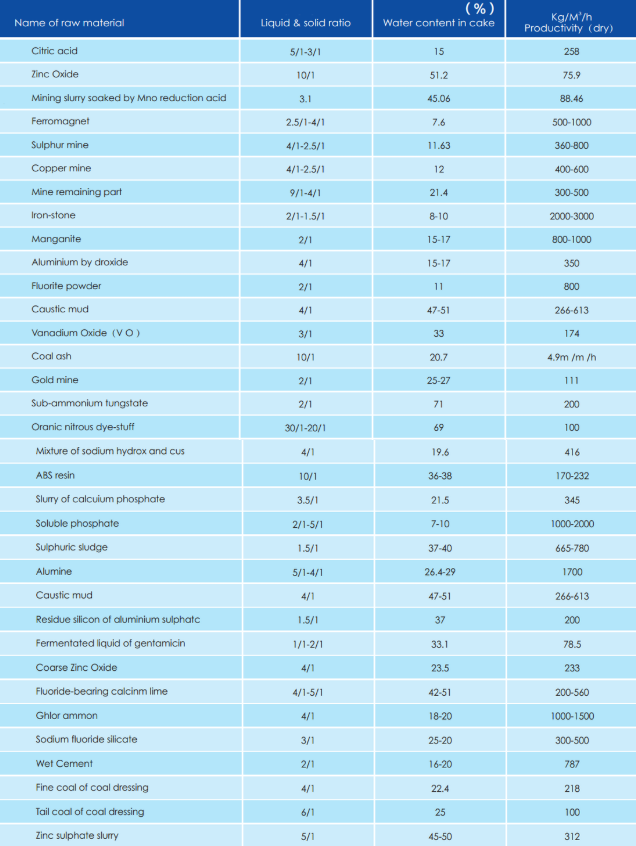

Specifications of DI Horizontal Vacuum Tray Belt Filter
Features of DI Horizontal Vacuum Tray Belt Filte
● Feeding, filtering, cake washing, cake discharging, filter cloth washing and redirection can be finished continuously and automatically, so it has high level automation.
● It can wash cake with several times clean water and filtrate,the filtrate(mother liquor) and washed liquor can be collected separately.
● It can filter quickly in a thin layer for the sludge with high viscosity and bad filtration character and has high adaptability.
● It’s flexible to assemble by its modular structure, convenient for transportation, installation and maintenance.
● It’s convenient to remote and local control by PLC control.
WASHING DEVICE
Use process water to spray washing cloth and equipped with vacuum sealing box to ensure the using site clean. The spray nozzle uses the American atomization company product to fully guarantee the washing effect.
CAKE WASHING PROCESS
Adopt the overflow washing and drip spray washing devices, according to the materialand the process requirement to use clean water direct washing or the filtrate indirect washing,which can wash the cake thoroughly.
REDERECTION DEVICE
Adoptcylinderor air-bag to push the redirection roller move a certain angle to adjust the cloth automatically and ensure the cloth running normally.
CONTROL SYSTEM
Adopts remoteand local alternately control, convenient for the operation workand unmannedoperation.

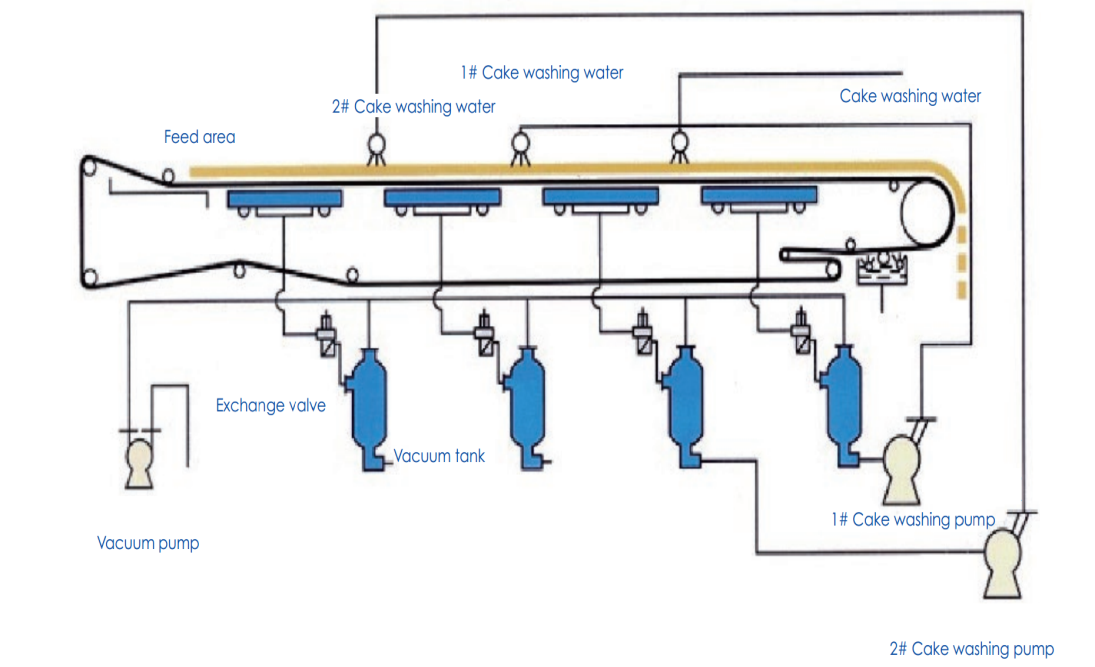

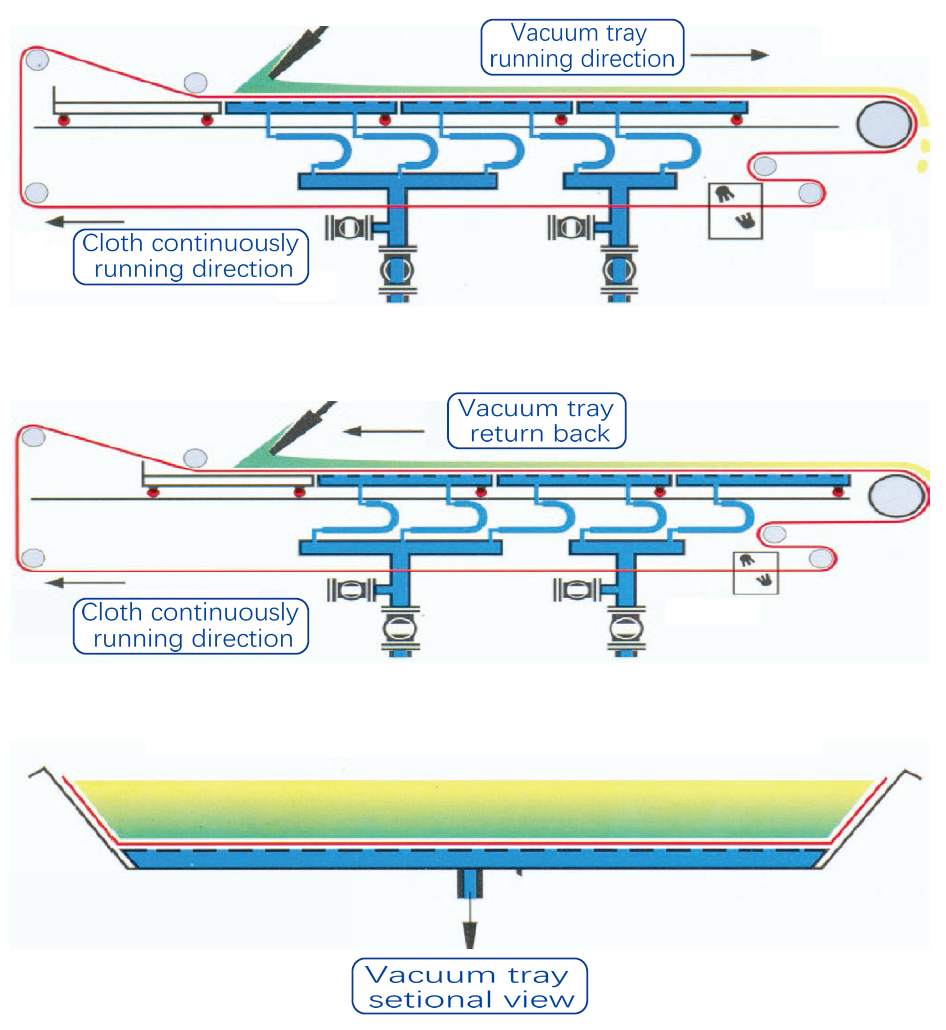

Working Process of DI Horizontal Vacuum Tray Belt Filter
